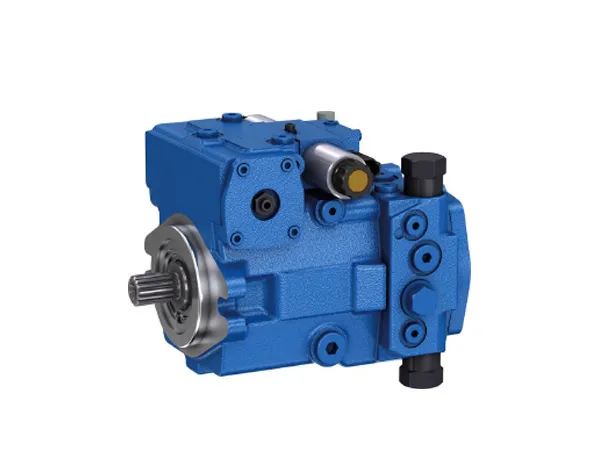

Hydraulic Piston Pump, Model HL-A10VG
(45cm³/rev variable displacement axial piston pump for closed circuit)
The HL-A10VG variable displacement pump is built for closed-loop hydraulic systems, giving you precise control and smooth operation in demanding applications. With multiple control options and an integrated pressure cut-off function, this pump ensures efficiency, adaptability, and reliability for yOur Hydraulic Products.
- Displacement 45 cm³/rev
- Nominal pressure 350 bar
- Max. allowable pressure 400 bar
Technical Data
| Size | |||||
| Geometric displacement | Variable pump | Vg max | cm³/rev | 45 | |
| Boost pump, standard (at p = 20 bar) | Vg sp | cm³/rev | 13.8 | ||
| Rotation speed | Maximum at Vg max | nmax continuous | rpm | 3300 | |
| Limited maximum | nmax limited | rpm | 3550 | ||
| Intermittent maximum | nmax interm. | rpm | 3800 | ||
| Minimum | nmin | rpm | 500 | ||
| Flow | at nmax continuous and Vg max | qv max | L/min | 152 | |
| Power | at nmax continuous and Vg max | Δp=300 bar | Pmax | kW | 75.9 |
| Torque | at Vg max | Δp=300 bar | Tmax | Nm | 220 |
| Δp=100 bar | T | Nm | 73.2 | ||
| Moment of inertia for drive shaft | J | kg·m² | 0.0033 | ||
| Max. angular acceleration | rad/s² | 4000 | |||
| Max. rotation speed variation | rpm | 14 | |||
| Case volume | V | L | 0.75 | ||
| Weight without through drive (approx.) | M | kg | 27 | ||
Features
- axial piston variable displacement pump Swashplate design provides consistent hydrostatic power in closed circuits.
- proportional flow control Flow rate adjusts in proportion to your system’s drive speed and displacement, offering smooth and accurate regulation.
- infinitely variable displacement adjustment Output flow increases from zero to maximum based on the swashplate angle, giving you full control over hydraulic performance.
- seamless flow direction changes Effortlessly reverse hydraulic flow by adjusting the swashplate movement.
- versatile control options A range of control modes let you customize your system’s response and efficiency.
- integrated pressure relief system Each high-pressure side is equipped with dual relief valves to protect your hydrostatic transmission from overload.
- dual-function relief valves These also serve as charge valves, ensuring steady system operation.
- built-in charge pump Maintains charge pressure and supplies control oil for greater reliability.
- pressure limiting function An internal charge relief valve regulates the maximum charge pressure to prevent excess strain.
- standard pressure cut-off valve Integrated by default to enhance system protection.
