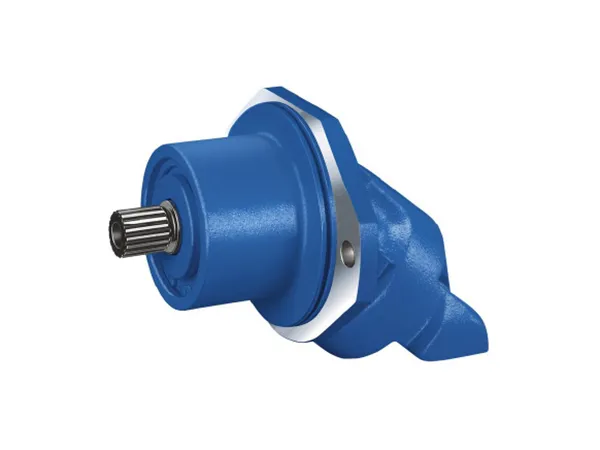

HL-A2FE HYDRAULIC MOTORS
Fixed Displacement Axial Piston Motor for Closed Circuit

Fixed Displacement Axial Piston Motor for Closed Circuit

If you're looking for a high-speed, low-torque hydraulic motor that delivers efficiency and reliability, the HL-A2FE fixed displacement motor is a great fit. Designed for closed-loop hydraulic systems, it offers smooth operation and a compact design, making it ideal for space-sensitive applications.

  • Displacement 23-125 cm³/rev
  • Nominal pressure 400 bar
  • Max. allowable pressure 450 bar
Request a Quote
Technical Data
Size
Displacement
(cm³/rev)
Max. speed (rpm)
nmax
Nmax interm.
Max. Flow
(L/min)
Torque (Nm)
Δp=400 bar
Details
23
22.9
6300
6900
144
144
Displacement Vg cm³/rev 22.9
Max. rotation speed nmax rpm 6300
nmax interm. rpm 6900
Max. flow qv max L/min 144
Torque constant Tk Nm/bar 0.36
Torque Δp=400 bar T Nm 144
Rotary stiffness Nm/0 230
Moment of inertia for drive shaft J kgm² 0.0012
Case volume L 0.2
Weight (approx.) m kg 10.5
28
28.1
6300
6900
176
178
Displacement Vg cm³/rev 28.1
Max. rotation speed nmax rpm 6300
nmax interm. rpm 6900
Max. flow qv max L/min 176
Torque constant Tk Nm/bar 0.445
Torque Δp=400 bar T Nm 178
Rotary stiffness Nm/0 230
Moment of inertia for drive shaft J kgm² 0.0012
Case volume L 0.2
Weight (approx.) m kg 10.5
32
32
6300
6900
201
204
Displacement Vg cm³/rev 32
Max. rotation speed nmax rpm 6300
nmax interm. rpm 6900
Max. flow qv max L/min 201
Torque constant Tk Nm/bar 0.509
Torque Δp=400 bar T Nm 204
Rotary stiffness Nm/0 230
Moment of inertia for drive shaft J kgm² 0.0012
Case volume L 0.2
Weight (approx.) m kg 10.5
45
45.6
5600
6200
255
290
Displacement Vg cm³/rev 45.6
Max. rotation speed nmax rpm 5600
nmax interm. rpm 6200
Max. flow qv max L/min 255
Torque constant Tk Nm/bar 0.725
Torque Δp=400 bar T Nm 290
Rotary stiffness Nm/0 230
Moment of inertia for drive shaft J kgm² 0.0024
Case volume L 0.33
Weight (approx.) m kg 15
56
56.1
5000
5500
280
356
Displacement Vg cm³/rev 56.1
Max. rotation speed nmax rpm 5000
nmax interm. rpm 5500
Max. flow qv max L/min 280
Torque constant Tk Nm/bar 0.89
Torque Δp=400 bar T Nm 356
Rotary stiffness Nm/0 440
Moment of inertia for drive shaft J kgm² 0.0042
Case volume L 0.45
Weight (approx.) m kg 18
63
63
5000
5500
315
400
Displacement Vg cm³/rev 63
Max. rotation speed nmax rpm 5000
nmax interm. rpm 5500
Max. flow qv max L/min 315
Torque constant Tk Nm/bar 1
Torque Δp=400 bar T Nm 400
Rotary stiffness Nm/0 440
Moment of inertia for drive shaft J kgm² 0.0042
Case volume L 0.45
Weight (approx.) m kg 19
80
80.4
4500
5000
360
508
Displacement Vg cm³/rev 80.4
Max. rotation speed nmax rpm 4500
nmax interm. rpm 5000
Max. flow qv max L/min 360
Torque constant Tk Nm/bar 1.27
Torque Δp=400 bar T Nm 508
Rotary stiffness Nm/0 670
Moment of inertia for drive shaft J kgm² 0.0072
Case volume L 0.55
Weight (approx.) m kg 23
90
90
4500
5000
405
572
Displacement Vg cm³/rev 90
Max. rotation speed nmax rpm 4500
nmax interm. rpm 5000
Max. flow qv max L/min 405
Torque constant Tk Nm/bar 1.43
Torque Δp=400 bar T Nm 572
Rotary stiffness Nm/0 670
Moment of inertia for drive shaft J kgm² 0.0072
Case volume L 0.55
Weight (approx.) m kg 25
107
106.7
4000
4400
427
680
Displacement Vg cm³/rev 106.7
Max. rotation speed nmax rpm 4000
nmax interm. rpm 4400
Max. flow qv max L/min 427
Torque constant Tk Nm/bar 1.7
Torque Δp=400 bar T Nm 680
Rotary stiffness Nm/0 880
Moment of inertia for drive shaft J kgm² 0.0116
Case volume L 0.8
Weight (approx.) m kg 34
125
125
4000
4400
500
769
Displacement Vg cm³/rev 125
Max. rotation speed nmax rpm 4000
nmax interm. rpm 4400
Max. flow qv max L/min 500
Torque constant Tk Nm/bar 1.99
Torque Δp=400 bar T Nm 769
Rotary stiffness Nm/0 880
Moment of inertia for drive shaft J kgm² 0.0116
Case volume L 0.8
Weight (approx.) m kg 36
Size Displacement (cm³/rev) Max. speed (rpm) Max. Flow (L/min) Torque (Nm)
nmax nmax interm. Δp=400 bar
23 22.9 6300 6900 144 144
28 28.1 6300 6900 176 178
32 32 6300 6900 201 204
45 45.6 5600 6200 255 290
56 56.1 5000 5500 280 356
63 63 5000 5500 315 400
80 80.4 4500 5000 360 508
90 90 4500 5000 405 572
107 106.7 4000 4400 427 680
125 125 4000 4400 500 769
Features
  • compact and space-saving design The motor’s flange is positioned at the center of the housing, allowing it to fit almost entirely within the mechanical gearbox, creating a streamlined and efficient setup.
  • hassle-free installation No need to worry about mounting tolerances, this motor integrates easily into your system.
  • quick and easy assembly Simply “insert” it into the mechanical gearbox, saving you time and effort during installation.
Applications
Construction Machinery
Construction Machinery
Mining and Quarrying Equipment
Mining and Quarrying Equipment
