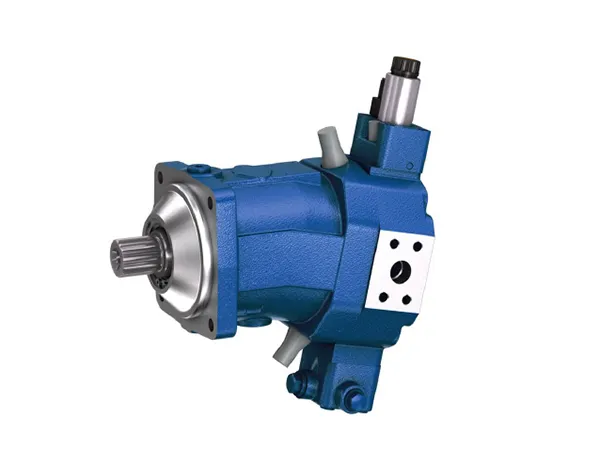

HL-A6VM HYDRAULIC MOTORS
Fixed Displacement Axial Piston Motor for Closed Circuit

Fixed Displacement Axial Piston Motor for Closed Circuit

The HL-A6VM fixed displacement motor is built for high-load, long-duration operations where precision and efficiency are essential. Whether you're running heavy machinery or handling demanding hydraulic applications, this motor delivers consistent power and smooth performance to keep your equipment operating at its best.

  • Displacement 55-355 cm³/rev
  • Nominal pressure 400 bar
  • Max. allowable pressure 450 bar
Request a Quote
Technical Data
Size
Displacement (cm³/rev)
Vgmax
Max speed (rpm)
nnom
Max. Flow
(L/min)
Torque (Nm)
Δp=400 bar
Δp=350 bar
Details
55
54.8
4450
244
349
305
Geometric displacement Vgmax cm³ 54.8
Vgmin cm³ 0
Vgx cm³ 35
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 4450
at Vg < Vgx nmax rpm 7000
at Vg0 nmax rpm 8350
Inlet flow at nnom and Vgmax qvmax L/min 244
Torque at Vgmax Δp=400 bar T Nm 349
Δp=350 bar T Nm 305
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 10
Vg/2 to 0 Cmin kNm/rad 32
Moment of inertia for rotary group JGR kgm² 0.0042
Max. angular acceleration α rad/s² 31500
Case volume V L 0.75
Weight approx. m kg 26
80
80
3900
312
509
446
Geometric displacement Vgmax cm³ 80
Vgmin cm³ 0
Vgx cm³ 51
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 3900
at Vg < Vgx nmax rpm 6150
at Vg0 nmax rpm 7350
Inlet flow at nnom and Vgmax qvmax L/min 312
Torque at Vgmax Δp=400 bar T Nm 509
Δp=350 bar T Nm 446
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 16
Vg/2 to 0 Cmin kNm/rad 48
Moment of inertia for rotary group JGR kgm² 0.008
Max. angular acceleration α rad/s² 24000
Case volume V L 1.2
Weight approx. m kg 34
107
107
3550
380
681
596
Geometric displacement Vgmax cm³ 107
Vgmin cm³ 0
Vgx cm³ 68
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 3550
at Vg < Vgx nmax rpm 5600
at Vg0 nmax rpm 6300
Inlet flow at nnom and Vgmax qvmax L/min 380
Torque at Vgmax Δp=400 bar T Nm 681
Δp=350 bar T Nm 596
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 21
Vg/2 to 0 Cmin kNm/rad 65
Moment of inertia for rotary group JGR kgm² 0.0127
Max. angular acceleration α rad/s² 19000
Case volume V L 1.5
Weight approx. m kg 47
140
140
3250
455
891
778
Geometric displacement Vgmax cm³ 140
Vgmin cm³ 0
Vgx cm³ 88
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 3250
at Vg < Vgx nmax rpm 5150
at Vg0 nmax rpm 5750
Inlet flow at nnom and Vgmax qvmax L/min 455
Torque at Vgmax Δp=400 bar T Nm 891
Δp=350 bar T Nm 778
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 34
Vg/2 to 0 Cmin kNm/rad 93
Moment of inertia for rotary group JGR kgm² 0.0207
Max. angular acceleration α rad/s² 11000
Case volume V L 1.8
Weight approx. m kg 60
160
160
3100
496
1019
891
Geometric displacement Vgmax cm³ 160
Vgmin cm³ 0
Vgx cm³ 61
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 3100
at Vg < Vgx nmax rpm 4900
at Vg0 nmax rpm 5500
Inlet flow at nnom and Vgmax qvmax L/min 496
Torque at Vgmax Δp=400 bar T Nm 1019
Δp=350 bar T Nm 891
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 35
Vg/2 to 0 Cmin kNm/rad 105
Moment of inertia for rotary group JGR kgm² 0.0253
Max. angular acceleration α rad/s² 11000
Case volume V L 2.4
Weight approx. m kg 64
200
200
2900
580
1273
1114
Geometric displacement Vgmax cm³ 200
Vgmin cm³ 0
Vgx cm³ 76
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 2900
at Vg < Vgx nmax rpm 4600
at Vg0 nmax rpm 5100
Inlet flow at nnom and Vgmax qvmax L/min 580
Torque at Vgmax Δp=400 bar T Nm 1273
Δp=350 bar T Nm 1114
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 44
Vg/2 to 0 Cmin kNm/rad 130
Moment of inertia for rotary group JGR kgm² 0.0353
Max. angular acceleration α rad/s² 11000
Case volume V L 2.7
Weight approx. m kg 80
250
250
2700
675
—
1391
Geometric displacement Vgmax cm³ 250
Vgmin cm³ 0
Vgx cm³ 188
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 2700
at Vg < Vgx nmax rpm 3600
at Vg0 nmax rpm 3600
Inlet flow at nnom and Vgmax qvmax L/min 675
Torque at Vgmax Δp=400 bar T Nm -
Δp=350 bar T Nm 1391
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 60
Vg/2 to 0 Cmin kNm/rad 181
Moment of inertia for rotary group JGR kgm² 0.061
Max. angular acceleration α rad/s² 10000
Case volume V L 3
Weight approx. m kg 100
355
355
2240
795
—
1978
Geometric displacement Vgmax cm³ 355
Vgmin cm³ 0
Vgx cm³ 270
Max. rotation speed
(complying with maximum permissible inlet flow) 		at Vgmax nnom rpm 2240
at Vg < Vgx nmax rpm 2950
at Vg0 nmax rpm 2950
Inlet flow at nnom and Vgmax qvmax L/min 795
Torque at Vgmax Δp=400 bar T Nm -
Δp=350 bar T Nm 1978
Rotary stiffness Vgmax to Vg/2 Cmin kNm/rad 75
Vg/2 to 0 Cmin kNm/rad 262
Moment of inertia for rotary group JGR kgm² 0.102
Max. angular acceleration α rad/s² 8300
Case volume V L 5
Weight approx. m kg 170
Size Displacement (cm³/rev) Max speed (rpm) Max. Flow (L/min) Torque(Nm)
Vgmax nnom Δp=400bar Δp=350 bar
55 54.8 4450 244 349 305
80 80 3900 312 509 446
107 107 3550 380 681 596
140 140 3250 455 891 778
160 160 3100 496 1019 891
200 200 2900 580 1273 1114
250 250 2700 675 - 1391
355 355 2240 795 - 1978
Features
  • wide adjustment range Handles both high-speed and high-torque demands, making it versatile for various applications.
  • infinitely variable displacement control Seamlessly adjusts from maximum displacement (Vg max) down to zero (Vg min = 0), ensuring precise hydraulic control.
  • proportional speed regulation Output speed adapts directly to input flow and inversely to displacement, optimizing your system’s performance.
  • adaptive torque output As pressure differential and displacement increase, the motor automatically enhances torque output, delivering the power your system needs.
  • smooth hydrostatic drive A broad adjustment range, multiple control options, and excellent startup characteristics make it a versatile and efficient solution.
  • cost-saving design By eliminating gear reducers and requiring a smaller hydraulic pump, this motor helps reduce system costs without compromising performance.
  • compact and durable build Designed for long service life, featuring a high power-to-weight ratio and outstanding volumetric efficiency to keep your system running longer with minimal maintenance.
Applications
Construction Machinery
Construction Machinery
Mining and Quarrying Equipment
Mining and Quarrying Equipment
